Optical Modules

155M-2.67G BIDI SFP

155M/622M/1.25G/2.5G/4G SFP include BIDI series,complaint with MSA,SFF-8472,with the feature of low power consumption,commerical or industrial operation temperature and high reliability,suitable for DC,Metro and Transmission networks.
    ●Class 1 laser product EN 60825-1 standards
    ●Operating data rate up to 2.67Gbps
    ●Compliant with SFP MSA and SFF-8472
    ●Compliant with SDH/SONET
    ●Single LC or SC connector
    ●Hot pluggable
    ●3.3V Single Power Supply
    Application
    ●Gigabit Ethernet
    ●Fiber Channel
    ●Multi Rate Fiber Channel
    ●SONET / SDH Equipment Interconnect
    ●Storage Area Network(SAN)
    ●Other Optical Link
    Model Rate Wavelength Distance Optical power Sensitivity Other
    SFP-WDM-SM-0120A 155M TX1310nm 20km -15~-8dbm <-33dbm SMF/1xLC or SC
    SFP-WDM-SM-0120B 155M TX1550nm 20km -15~-8dbm <-33dbm SMF/1xLC or SC
    SFP-WDM-SM-0140A 155M TX1310nm 40km -9~-3dBm <-33dbm SMF/1xLC or SC
    SFP-WDM-SM-0140B 155M TX1550nm 40km -9~-3dBm <-33dbm SMF/1xLC or SC
    SFP-WDM-SM-0160A 155M TX1310nm 60km -5~0dBm <-34dbm SMF/1xLC
    SFP-WDM-SM-0160B 155M TX1550nm 60km -5~0dBm <-34dbm SMF/1xLC
    SFP-WDM-SM-0180A 155M TX1490nm 80km -5~0dBm <-34dbm SMF/1xLC
    SFP-WDM-SM-0180B 155M TX1550nm 80km -5~0dBm <-34dbm SMF/1xLC
    SFP-WDM-SM-0203A 1.25G TX1310nm 3km -9~-3dBm <-21dBm SMF/1xLC or SC
    SFP-WDM-SM-0203B 1.25G TX1550nm 3km -9~-3dBm <-21dBm SMF/1xLC or SC
    SFP-WDM-SM-0220A 1.25G TX1310nm 20km -9~-3dBm <-22dBm SMF/1xLC or SC

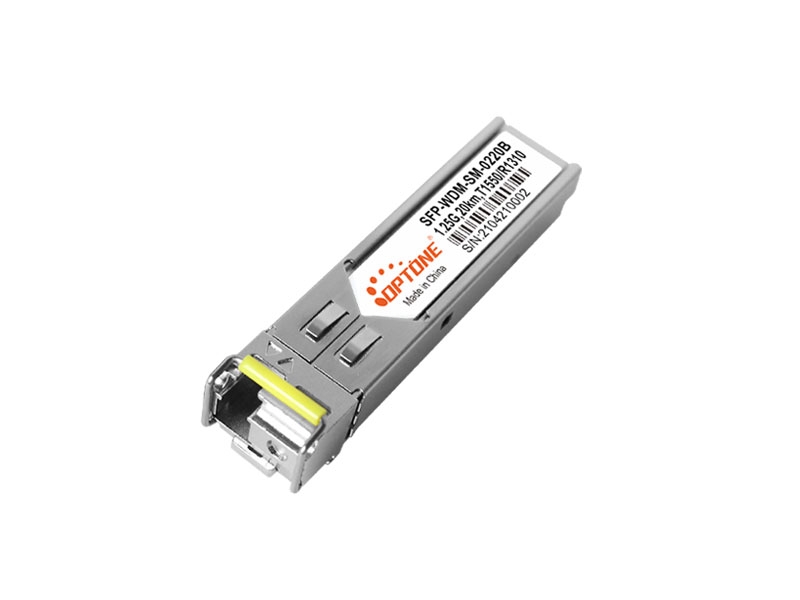

    SFP-WDM-SM-0220B 1.25G TX1550nm 20km -9~-3dBm <-22dBm SMF/1xLC or SC
    SFP-WDM-SM-0240A 1.25G TX1310nm 40km -5~0dBm <-23dBm SMF/1xLC or SC
    SFP-WDM-SM-0240B 1.25G TX1550nm 40km -5~0dBm <-23dBm SMF/1xLC or SC
    SFP-WDM-SM-0260A 1.25G TX1490nm 60km -2~3dBm <-24dBm SMF/1xLC or SC
    SFP-WDM-SM-0260B 1.25G TX1550nm 60km -2~3dBm <-24dBm SMF/1xLC or SC
    SFP-WDM-SM-0280A 1.25G TX1490nm 80km 0~5dBm <-24dBm SMF/1xLC or SC
    SFP-WDM-SM-0280B 1.25G TX1550nm 80km 0~5dBm <-24dBm SMF/1xLC or SC
    SFP-WDM-SM-02120A 1.25G TX1490nm 120km 0~5dBm <-32dBm SMF/1xLC
    SFP-WDM-SM-02120B 1.25G TX1550nm 120km 0~5dBm <-32dBm SMF/1xLC
    SFP-WDM-SM-0320A 2.5G TX1310nm 20km -5~0dBm <-18dBm SMF/1xLC
    SFP-WDM-SM-0320B 2.5G TX1550nm 20km -5~0dBm <-18dBm SMF/1xLC
    SFP-WDM-SM-0340A 2.5G TX1310nm 40km -2~3dBm <-20dBm SMF/1xLC
    SFP-WDM-SM-0340B 2.5G TX1550nm 40km -2~3dBm <-20dBm SMF/1xLC
    SFP-WDM-SM-0380A 2.5G TX1490nm 80km 0~5dBm <-28dBm SMF/1xLC
    SFP-WDM-SM-0380B 2.5G TX1550nm 80km 0~5dBm <-28dBm SMF/1xLC
